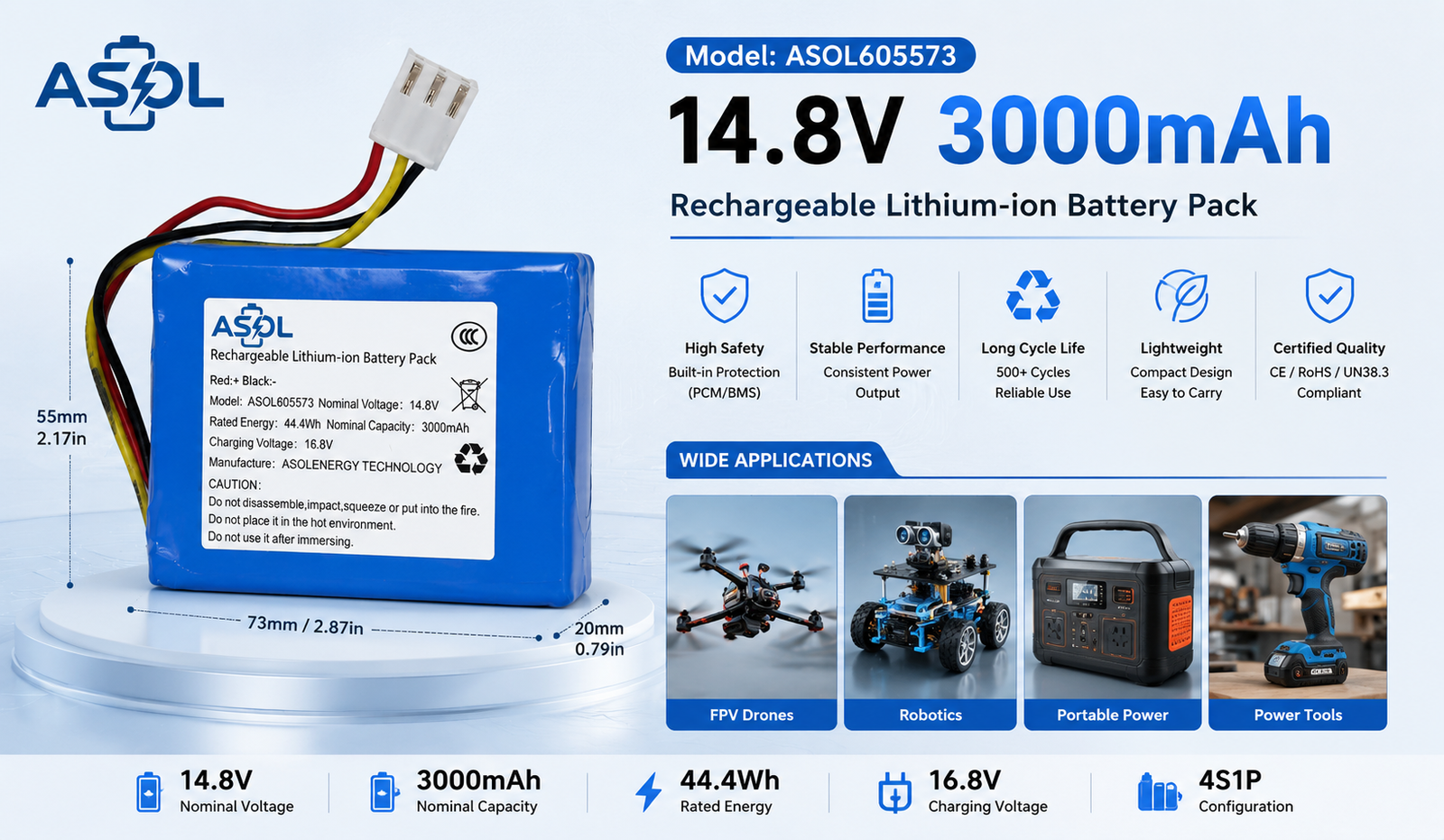

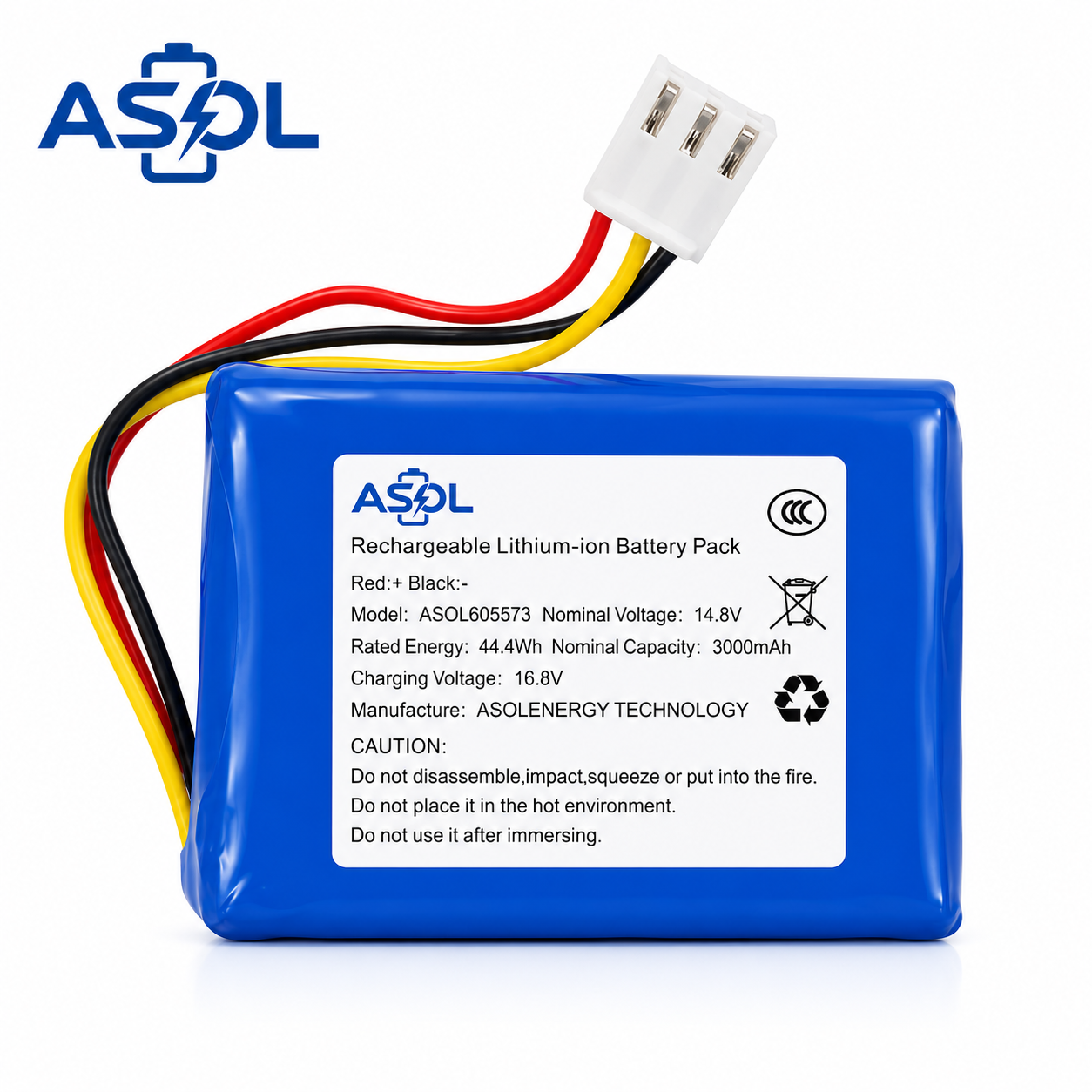

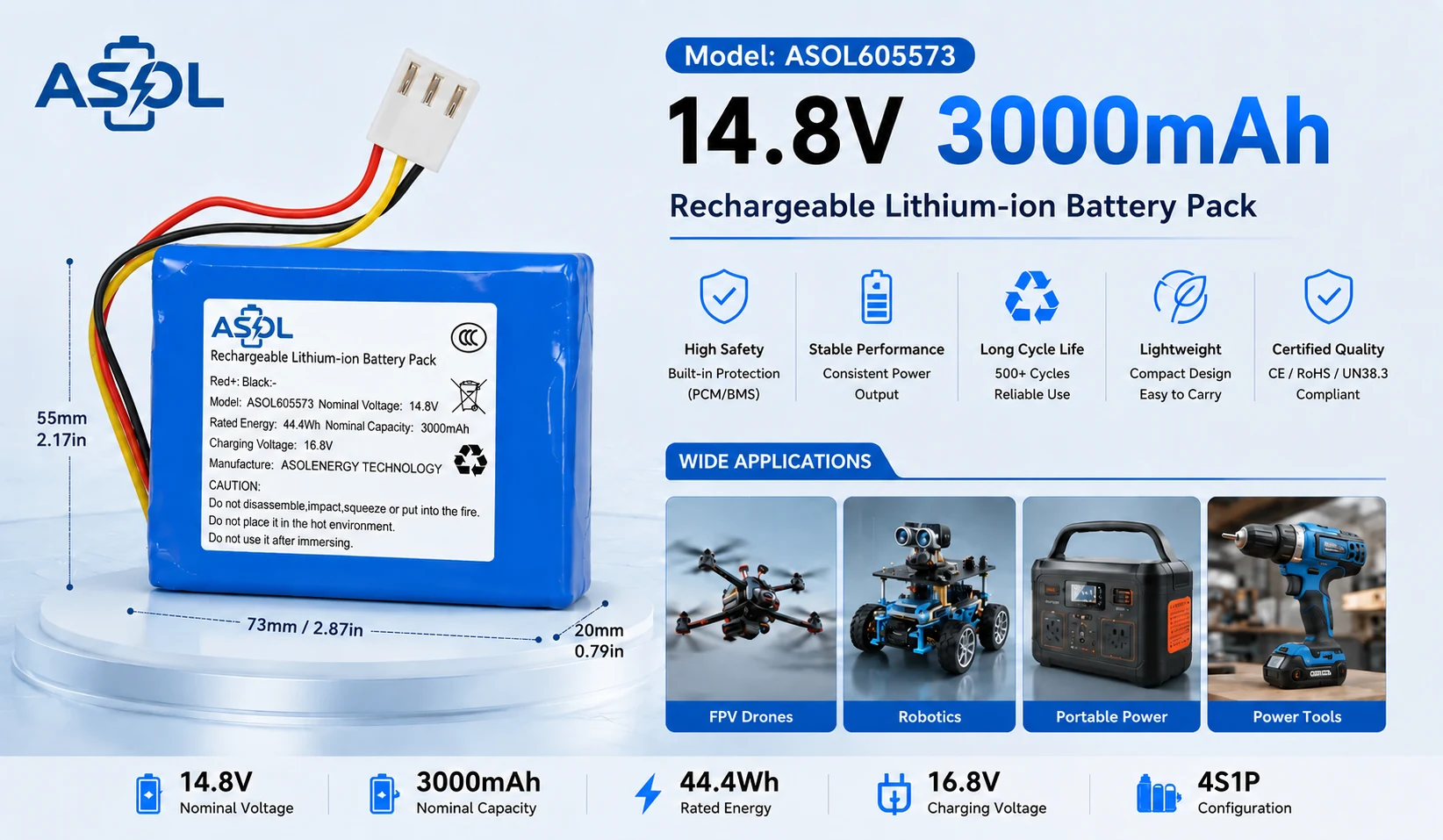

The ASOL605573 is a premium Li-ion battery pack using four flat 605573 soft-pouch cells in a 4S1P series configuration, delivering a stable 14.8V nominal voltage and 3000mAh capacity (44.4Wh). The 605573 Li-ion cell format (6mm thick x 55mm wide x 73mm long) provides a compact, lightweight form factor for applications where both power and portability matter.
14.8V is a common operating voltage for FPV drones and UAVs, robotics and mobile robot platforms, portable power modules, and light-duty cordless equipment. With 3000mAh capacity, the ASOL605573 can support 4S battery designs for drone builds, STEM robots, small AGVs, DC portable power modules, LED lighting packs, electric screwdrivers, small handheld drills and portable repair tools. Runtime depends on actual load current, BMS settings and connector choice.
Each pack incorporates a built-in PCB protection circuit (or optional full BMS with 4S cell balancing) guarding against overcharge, over-discharge, overcurrent and short circuit. Inspection requirements and acceptance criteria are confirmed for each project before order release. Grade-A Li-ion cells are voltage-matched within +/-10mV to support stable series operation and uniform cycle aging.
Technical Specifications
| Parameter | Value |
|---|---|
| Chemistry | Lithium-ion Polymer (Soft Pouch Cell, 605573 format) |
| Model | ASOL605573 |
| Configuration | 4S1P (4 Series, 1 Parallel) |
| Nominal Voltage | 14.8V |
| Capacity | 3000mAh |
| Energy | 44.4Wh |
| Charging Voltage | 16.8V (CC/CV) |
| Standard Discharge Current | 0.2C (600mA) |
| Max Continuous Discharge | 1C-2C (3A-6A) |
| Burst Discharge (10s) | 3C (9A) |
| Internal Resistance | ≤20mΩ (per pack) |
| Protection Circuit | PCB: overcharge / over-discharge / overcurrent / short circuit (BMS with 4S balance charging optional) |
| Standard Connector | XT60 (custom: XT90, EC5, JST-PH 2.0, JST-XH, Deans T-plug, Tamiya, Molex, etc.) |
| Balance Connector | JST-XH 5-pin (for 4S balance charging, optional) |
| Cycle Life | ≥500 cycles @ 80% capacity retention (0.5C, 25°C) |
| Operating Temperature | 0°C to +60°C (charge: 0°C to +45°C) |
| Storage Temperature | 0°C to +45°C (store at 50-80% SOC for long life) |
| Cell Dimensions | 6 × 55 × 73 mm (T × W × L per cell) |
| Pack Dimensions | Approx. 73 × 55 × 20 mm (excluding wires & connector) |
| Weight | Approx. 170-190g |
| Certifications | CE, RoHS, UN38.3, MSDS |
| Shipping Class | UN38.3 — Class 9 Dangerous Goods (air & sea compliant) |
| Manufacturer | ASOLENERGY TECHNOLOGY (Dongguan, China) |
Available Connector Options
| Connector | Description | Best For |
|---|---|---|
| XT60 (Default) | Mid-size gold bullet | Drones & RC standard |
| XT90 | High-current gold bullet | Large drones, high-current |
| EC5 | High-current banana | Power tools |
| JST-PH 2.0 | 2-pin, white connector | Consumer electronics |
| JST-XH | 5-pin | 4S balance charging |
| Deans T-Plug | RC high-current | 2S–6S RC applications |
| Tamiya | RC standard | Mini / Standard RC |
| Molex | Consumer electronics | IoT, small devices |
| Custom | Your specification | OEM/ODM projects (MOQ applies) |
Applications
Where the 605573 is used
14.8V 4S standard — 8-15 min flight on 5-inch FPV builds.
Powers ROS robots, small AGVs and competition platforms.
44.4Wh core for DIY 4S power banks and LED systems.
30–40 min runtime for light-duty drills and screwdrivers.
Why Choose Soft Pouch Cell Li-ion Over Cylindrical Cells?
For drones, power tools, and portable power applications, the choice of battery format directly impacts product performance and design flexibility. Here is a side-by-side comparison:
| Feature | 605573-4S Soft Pouch Cell Li-ion (This Product) | 18650-4S Li-ion |
|---|---|---|
| Thickness | ~20mm (ultra-thin) | ~36mm (4 cells side by side) |
| Weight | ~180g | ~240g |
| Shape | Flat — fits slim compartments | Cylindrical — needs round cell holders |
| Form Factor Flexibility | Custom dimensions possible | Fixed 18×65mm cell size |
| Internal Resistance | ≤20mΩ (Soft Pouch Cell design) | ~150-200mΩ |
| Capacity | 3000mAh | 2600-3500mAh (comparable) |
| Energy | 44.4Wh | 38.5–51.8Wh (comparable) |
| Cycle Life | ≥500 cycles | ≥500 cycles |
| Weight Advantage | 25-30% lighter | Heavier |
Choose 605573-4S when: Weight, thin profile, and form factor flexibility are critical — ideal for drones, slim power tools, and compact portable power.
Choose 18650-4S when: Maximum runtime and mature supply chain are priorities, and the larger cylindrical form factor is acceptable.
Why ASOL
Factory-direct, fully customizable
Connector, wire gauge, heat-shrink color, custom brand label, BMS & housing.
Integrated PCB against overcharge, over-discharge, overcurrent & short circuit.
Grade-A cells, voltage-matched ±10mV for stable, reliable performance.
Sample evaluation may be available for selected cylindrical and lithium polymer battery projects, subject to specification review and product availability. Sample freight is paid by the customer.
Inspection requirements and acceptance criteria are confirmed for each project before order release.
UN38.3 Class 9 air & sea · DHL/FedEx/UPS · EXW/FOB/CIF/DDP.
Packaging & Shipping
| Item | Details |
|---|---|
| Individual Packaging | Anti-static bag + foam cushion inside individual box |
| Inner Box | 10 pcs / inner box |
| Carton | 50 pcs / carton (customizable) |
| Carton Dimensions | Approx. 40 × 30 × 25 cm (subject to final packing) |
| Carton Weight | Approx. 10–12 kg |
| Shipping Options | Express (DHL / FedEx / UPS), Air freight, Sea freight |
| Shipping Terms | EXW, FOB, CIF, DDP available |
| Dangerous Goods | UN38.3 certified — compliant for air and sea transport (Class 9) |
| Lead Time (Samples) | 5-7 business days after payment |
| Lead Time (Bulk) | 15-25 business days after sample confirmation |
| Payment Terms | T/T, PayPal, Western Union |
Frequently Asked Questions
Is the ASOL605573 suitable for FPV drones and UAV platforms?
Yes. The ASOL605573 outputs standard 14.8V (4S Li-ion) which is the dominant voltage for 5-inch FPV racing drones, 6-inch freestyle FPV drones, 7-inch long-range FPV drones, DIY FPV drone kits, and educational UAV platforms running Betaflight, iNav, or ArduPilot. Actual operating time depends on aircraft design, load, flight profile and environmental conditions. Connector compatibility depends on your drone model — we can supply XT60, XT90, EC5, JST, or any other connector to match your drone's wiring harness. Contact us with your specific model for fit verification.
What is the minimum order quantity (MOQ)?
MOQ is confirmed after specification review. Sample evaluation may be available for selected cylindrical and lithium polymer battery projects, subject to specification review and product availability. Sample freight is paid by the customer.
Can I use this battery for light-duty cordless equipment like electric screwdrivers and small handheld drills?
Yes. The 14.8V 4S Li-ion format is ideal for light-duty cordless equipment including electric screwdrivers, small handheld drills, portable repair tools, and DIY workshop tools. Actual operating time depends on tool load, duty cycle and operating conditions. We can customize connectors to match your existing 14.4V-14.8V tool platforms.
What connector options are available?
We support all standard RC, drone, and power tool connectors: XT60, XT90, EC5, JST-PH 2.0, JST-XH, Deans T-plug, Tamiya, Molex, and custom connectors. Balance charge connectors (JST-XH 5-pin) can be included for 4S balance charging with any standard Li-ion charger.
What certifications does the ASOL605573 have?
Certification and test-document requirements depend on the selected cell, pack configuration and destination market. Please confirm requirements during project review.
What is a 605573 Soft Pouch Cell Li-ion battery?
605573 refers to the cell's physical dimensions: 6mm thick × 55mm wide × 73mm long. This is a standard Soft Pouch Cell Li-ion format that enables flat, compact battery pack designs — ideal for drones, power tools, and portable power applications where space and weight are critical.
How does 605573-4S Soft Pouch Cell Li-ion compare with 18650-4S Li-ion for drones and power tools?
Soft-pouch and cylindrical cells use different geometries and available specifications. Final weight, size, runtime, discharge performance and thermal behavior depend on the selected cell model and complete pack design. Choose the format after reviewing the target enclosure, load profile and validation requirements.
Get a Factory-Direct Quote
Whether you need 50 pcs for a pilot run or 10,000+ pcs for mass production, ASOL delivers competitive factory-direct pricing with reliable quality and fast turnaround.
| Contact | Details |
|---|---|
| info@asolbattery.com | |
| +86 157 7985 8703 | |
| Website | www.asolbattery.com |
| Response Time | Within 24 hours on working days |
Sample policy: Sample evaluation may be available for selected cylindrical and lithium polymer battery projects, subject to specification review and product availability. Sample freight is paid by the customer.
Bulk production: 15-25 business days
Payment terms: T/T, PayPal, Western Union
Looking for a reliable 14.8V Li-ion battery supplier for your FPV drone, robotics, portable power, or cordless tool products?
Send us your application details, required connector, target quantity, and any custom requirements — we will respond within 24 hours with a competitive factory-direct quote and project review support.
Need a different size or capacity? Explore ASOL’s full lithium polymer battery range →
