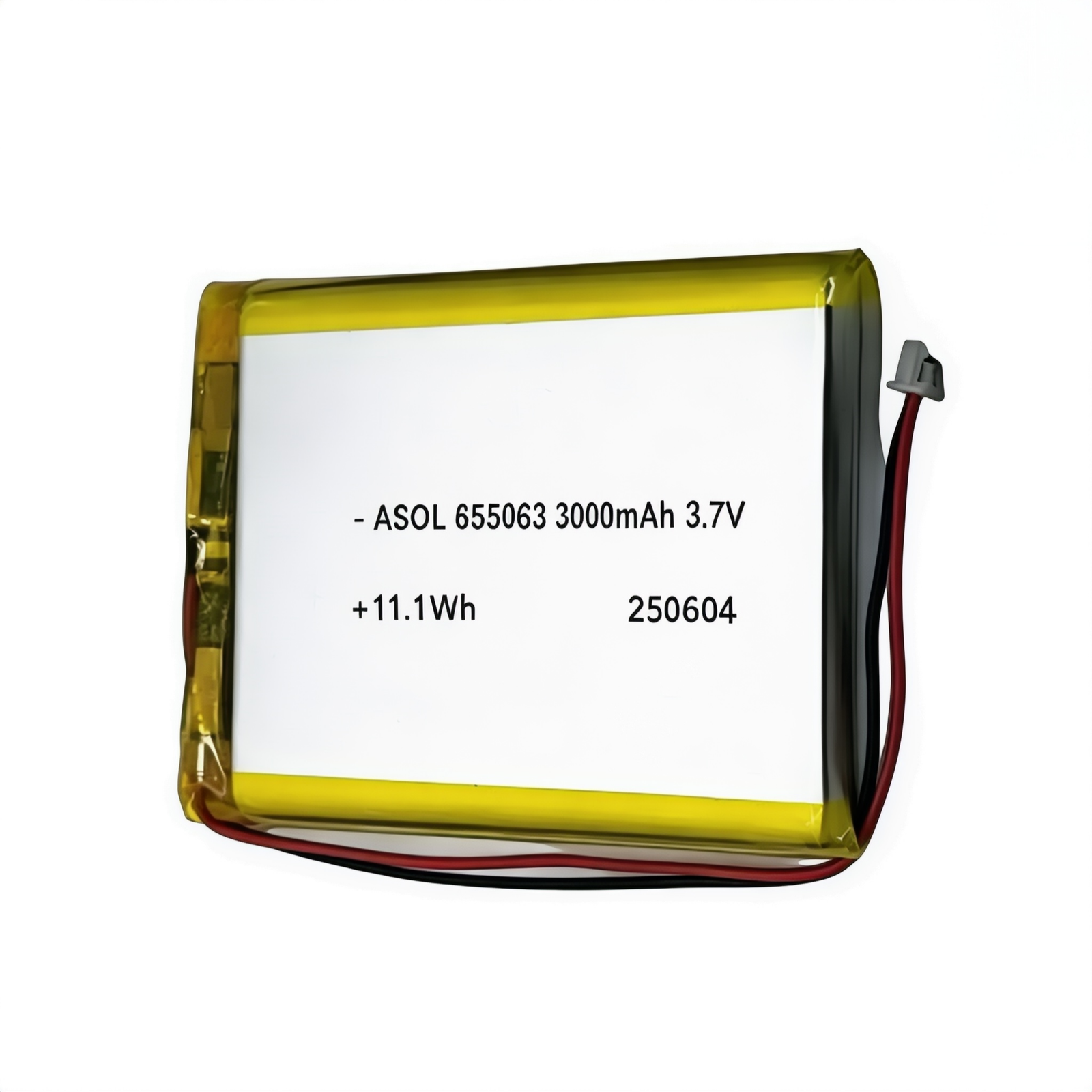

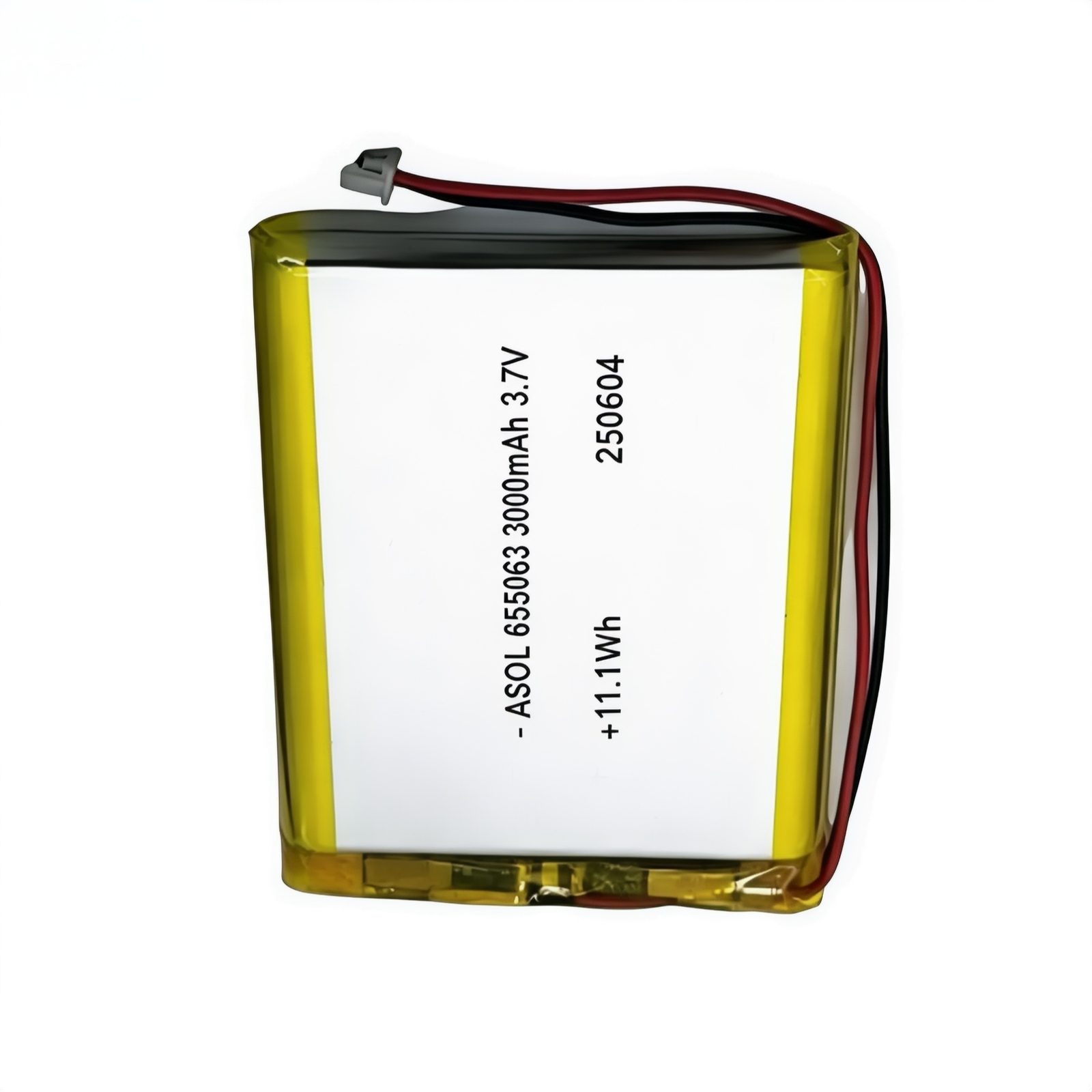

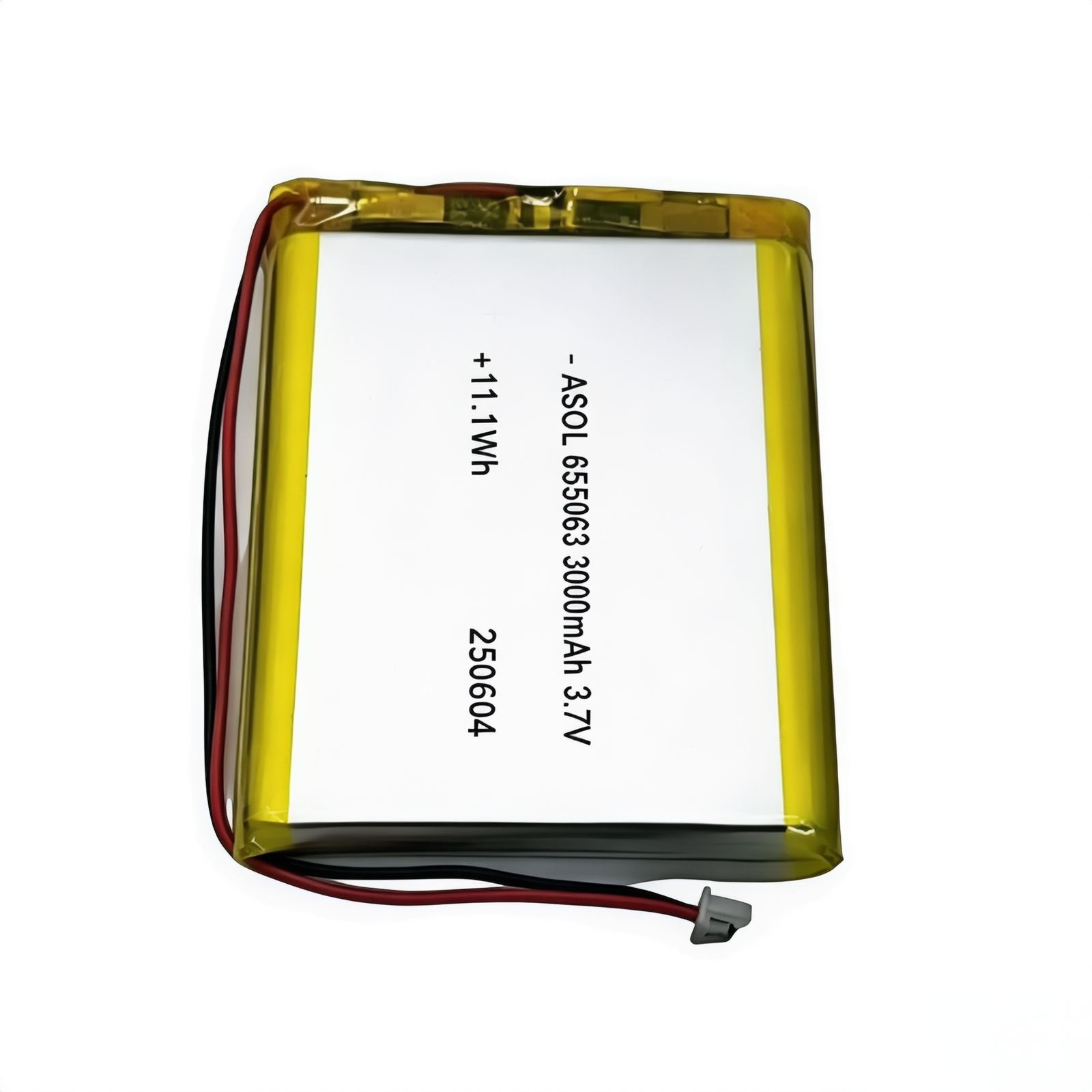

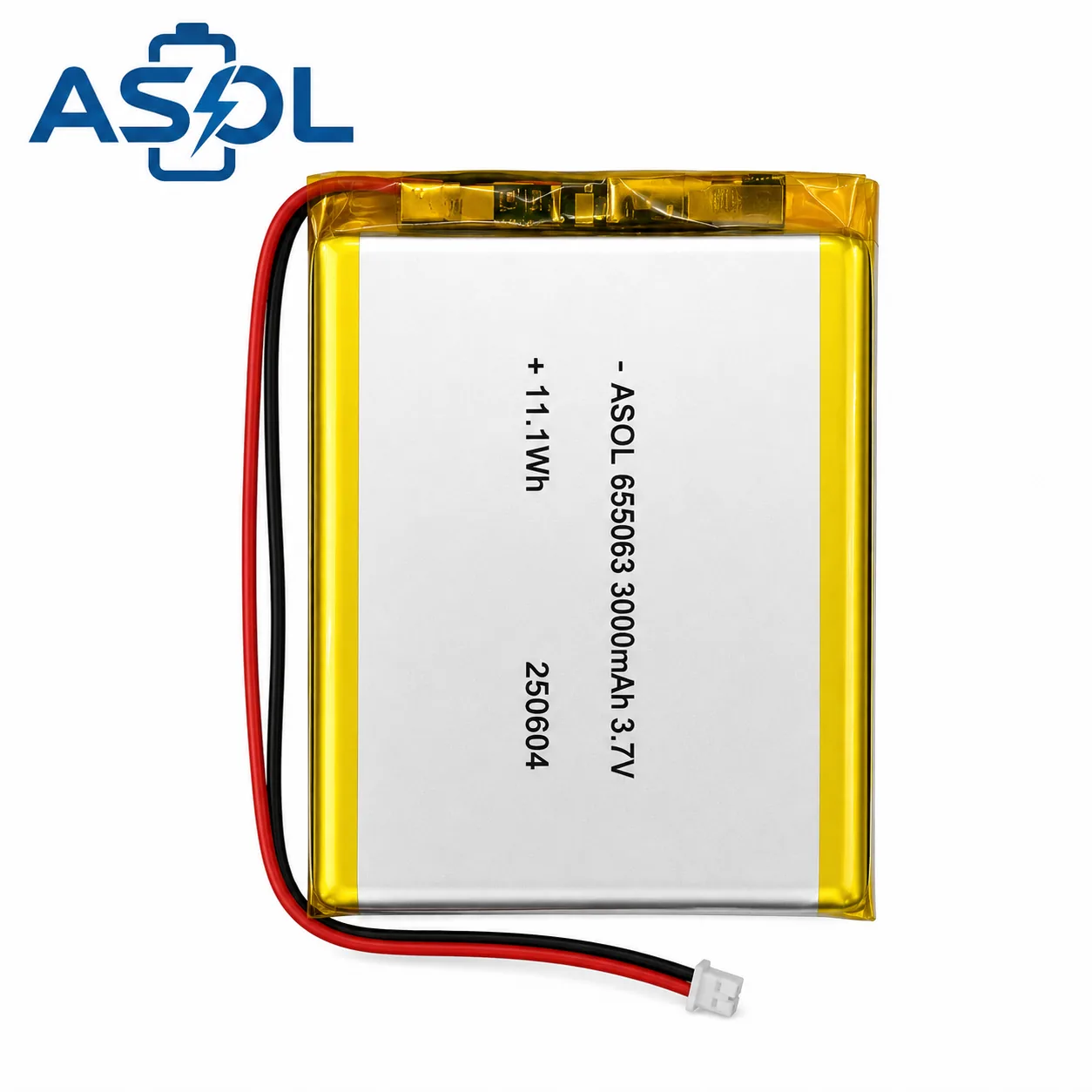

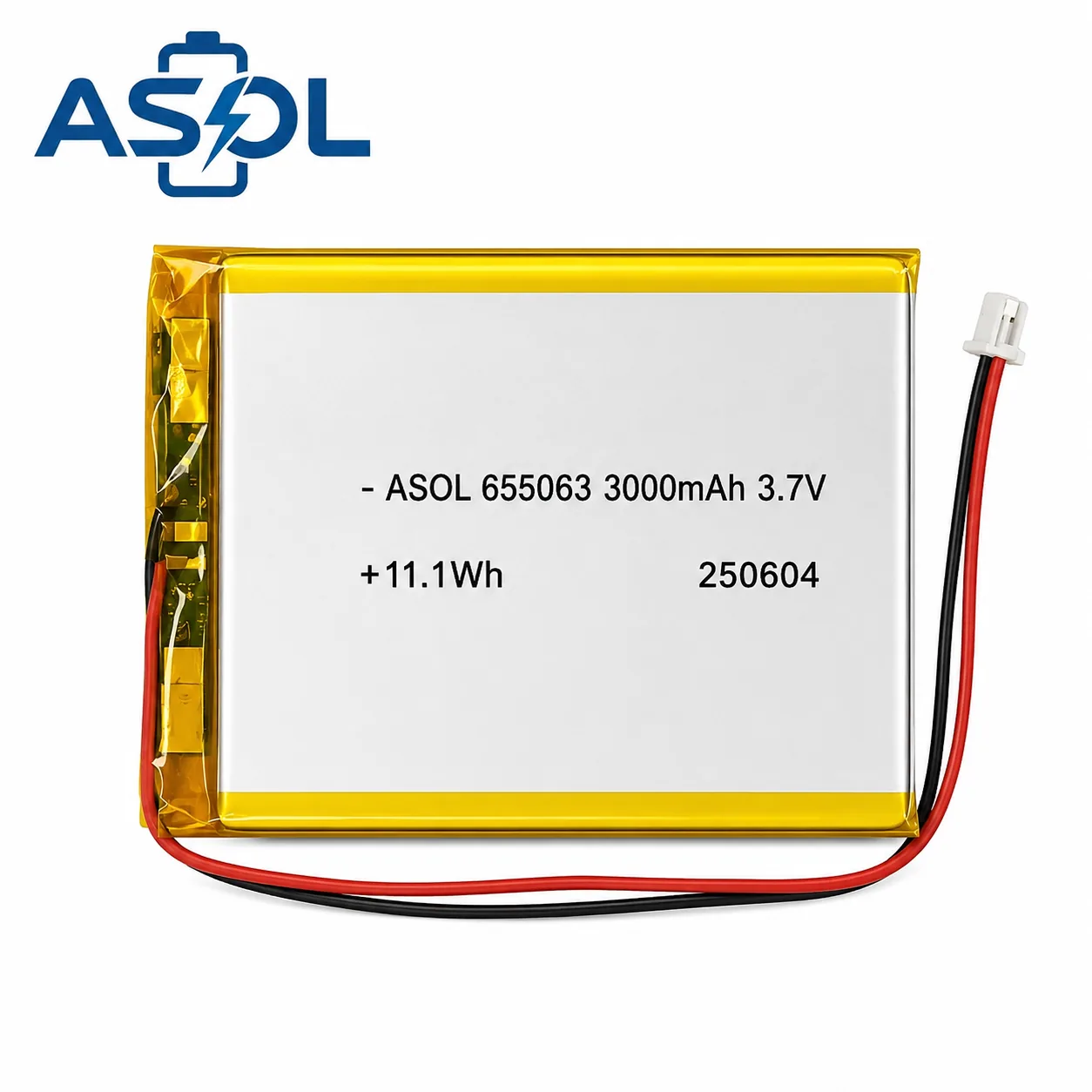

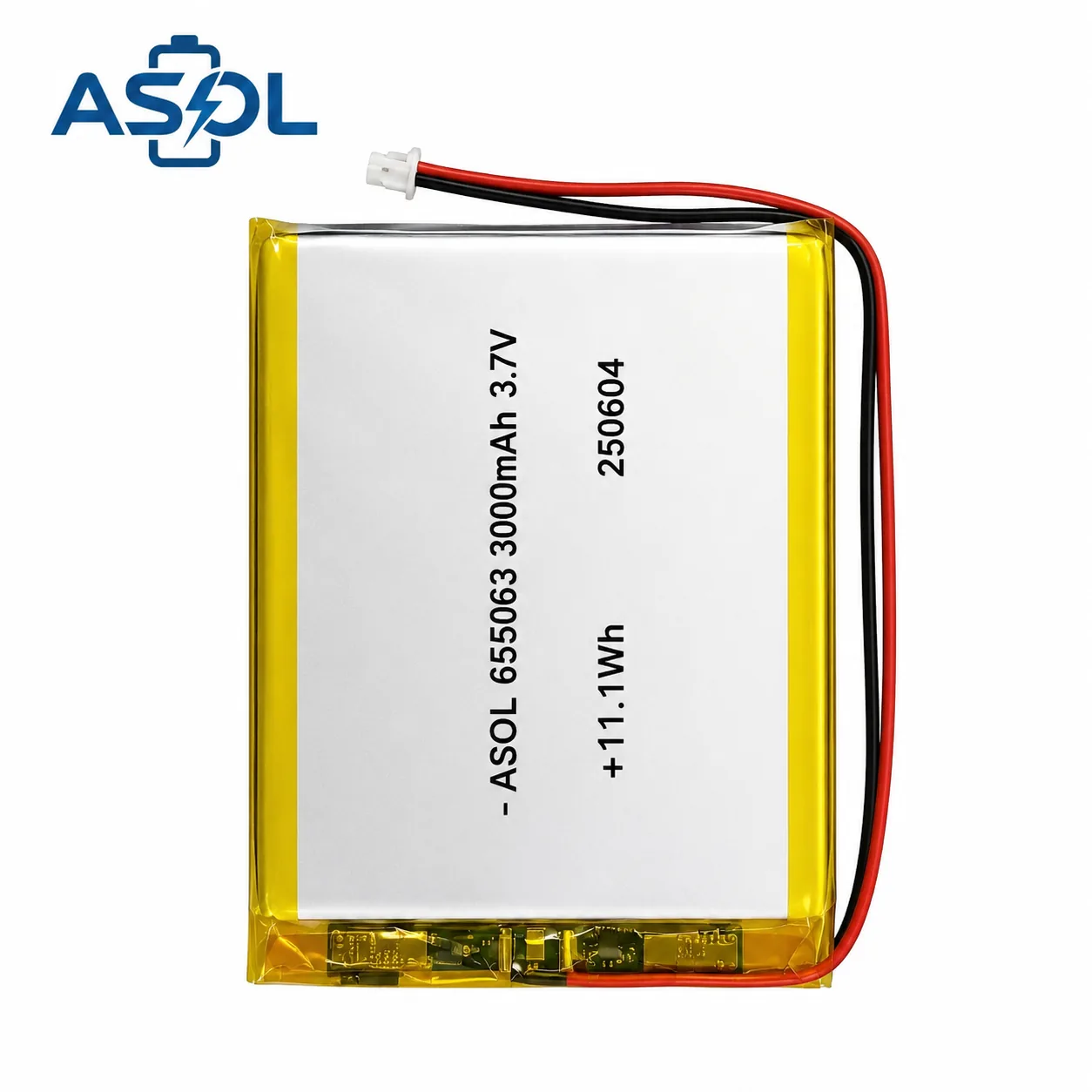

The ASOL 655063 is a high-capacity rechargeable lithium polymer (Lithium Polymer) soft pack battery built with pure cobalt cathode material, delivering exceptional energy density and stable cycle performance for demanding professional and consumer applications. With a nominal voltage of 3.7V, a capacity of 3000mAh, and an energy rating of 11.1Wh, this battery is purpose-built for handheld devices, law enforcement equipment, portable scanners, POS systems, and other professional-grade portable electronics.
Why Pure Cobalt Material?
The ASOL 655063 uses pure cobalt (LiCoO2 cathode material — the gold standard for high energy density Lithium Polymer cells. Pure cobalt delivers:
- Higher energy density — more power packed into the same volume
- Stable voltage curve — consistent output throughout the discharge cycle
- Longer cycle life —≥500 charge/discharge cycles at 80% capacity retention
- Lower internal resistance — AC impedance as low as 150mΩ for efficient power delivery
Key Features
Compact power for pro handhelds
3000mAh / 11.1Wh for extended device operation.
Lightweight and flexible for space-constrained devices.
Premium material for high energy density and long life.
Standard 2-pin JST for easy integration.
−20°C to +60°C for indoor and outdoor use.
3000mA continuous discharge supports high-drain devices.
Long-lasting performance for professional equipment.
UN38.3 certified for safe global transport.
Built for Professional Handheld Equipment

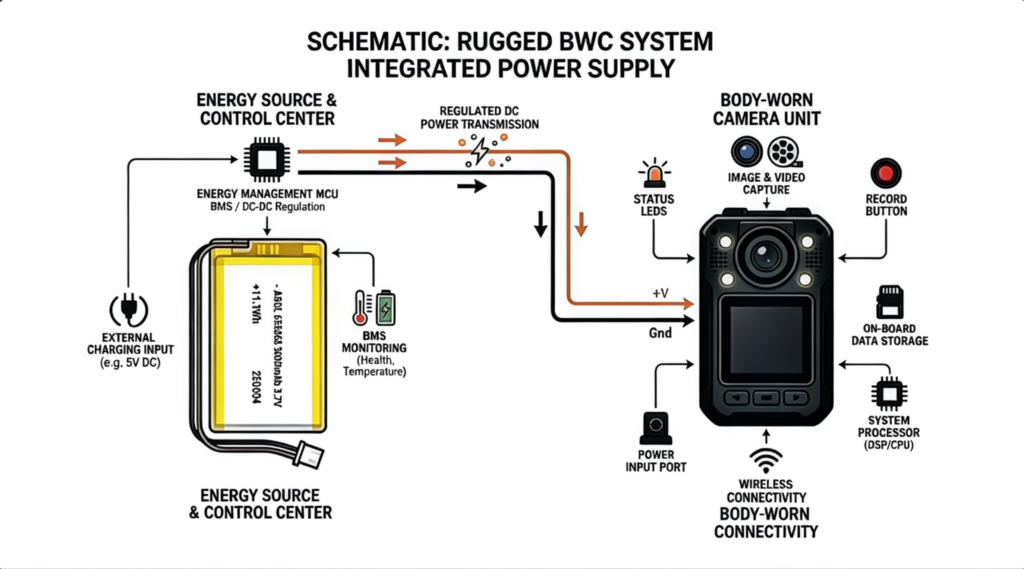

The ASOL 655063 is the go-to power solution for professional handheld devices that demand reliable, long-lasting battery performance. Whether you’re powering body-worn cameras for law enforcement, portable barcode scanners for retail, or POS terminals for payment processing — the 655063 delivers consistent power through every shift.
With a maximum continuous discharge current of 3000mA (1C), this battery handles the sudden current spikes of high-drain professional devices without sacrificing cycle life or safety.
Designed for Safety and Compliance
Every ASOL 655063 is manufactured to international safety standards:
- UN38.3 Certified — Safe for air, sea, and land transport
- UN38.3 Certified — Meets US and international safety standards
- UN38.3 Certified — Compliant for Korea and Japan markets
- — China quality certification
Technical Specifications
Basic Parameters
| Parameter | Value |
|---|---|
| Model | ASOL 655063 |
| Nominal Voltage | 3.7V |
| Capacity | 3000mAh |
| Energy | 11.1Wh |
| Dimensions | 6.6 x 50.5 x 65.5mm |
| Cell Type | Soft Pack Lithium Polymer — Pure Cobalt |
Electrical Characteristics
| Parameter | Value |
|---|---|
| Max Charge Voltage | 4.2V |
| Discharge Cut-off Voltage | 2.5V |
| Max Continuous Charge Current | 1500mA (0.5C) |
| Max Continuous Discharge Current | 3000mA (1C) |
| AC Internal Impedance | ≥50mΩ |
| Cycle Life | ≥500 cycles |
Temperature Range
| Parameter | Value |
|---|---|
| Charging Temperature | 0°C to +45°C |
| Discharge Temperature | -20°C to +60°C |
| Storage Temperature | -20°C to +45°C |
Certifications
| Certification | Status |
|---|---|
| UN38.3 | ✓Certified |

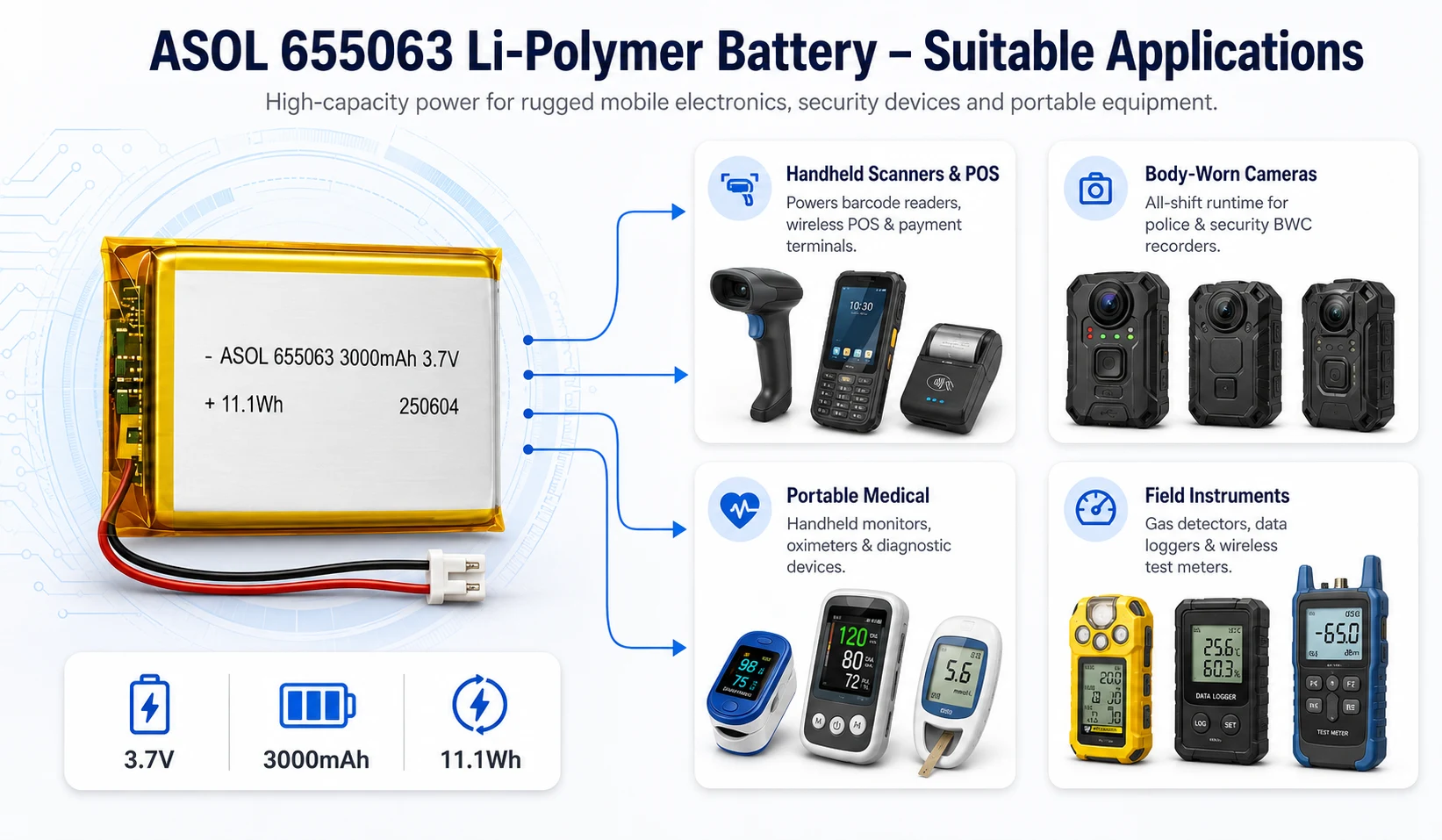

Applications
Where the 655063 is used
Powers barcode readers, wireless POS & payment terminals.
All-shift runtime for police & security BWC recorders.
Handheld monitors, oximeters & diagnostic devices.
Gas detectors, data loggers & wireless test meters.
Packing & Logistics
| Item | Details |
|---|---|
| MOQ | 10 pieces |
| Package | Standard export carton |
| Shipping | DHL, FedEx, UPS, Sea freight |
| Lead Time | 7-5 days for samples/bulk |
Frequently Asked Questions

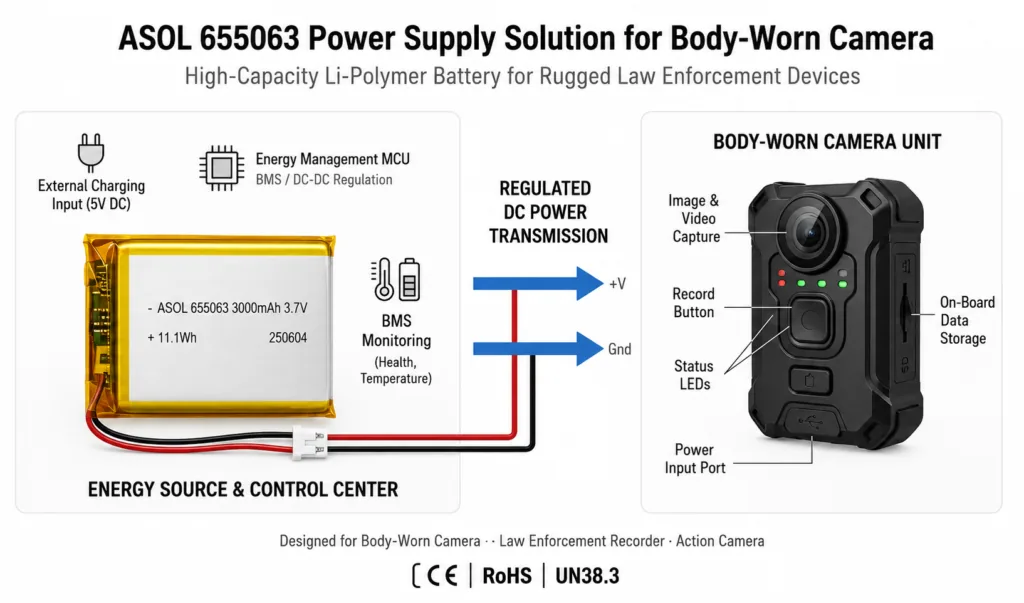

What makes the ASOL 655063 suitable for law enforcement body cameras?
The 655063 provides 3000mAh capacity for long recording sessions, a wide temperature range (-20°C to 60°C) for all-weather operation, and 500+ cycle life for daily professional use. Its compact 6.6×50.5×65.5mm form factor integrates seamlessly into body-worn camera designs.
Can this battery power a wireless POS terminal?
Yes. POS terminals typically require 1000-2000mA during active use. The 655063 supports up to 3000mA continuous discharge, easily meeting the demands of wireless POS systems, credit card readers, and mobile payment devices.
What is the battery's capacity retention over time?
The ASOL 655063 maintains ≥80% capacity after 500 charge/discharge cycles under standard test conditions (0.5C charge / 0.5C discharge at 25°C).
Is this battery compatible with my handheld scanner?
Please verify your device's battery dimensions (6.6×50.5×65.5mm) and connector type match before purchasing. We also offer OEM custom sizes and connectors for specific device requirements.
Is this battery safe for air freight?
Yes. The ASOL 655063 is UN38.3 certified, meeting IATA and ICAO regulations for the transport of lithium batteries by air, sea, and land.
Do you offer custom battery solutions?
Yes. ASOL provides OEM/ODM custom battery services including custom capacity, dimensions, connectors, BMS configurations, and protection circuit designs. Contact us for bulk pricing and custom orders.
What type of cathode material does this battery use?
The ASOL 655063 uses pure cobalt (LiCoO2 cathode material, which provides higher energy density and more stable voltage output compared to mixed cathode materials.
Company Information
ASOL Battery Co., Ltd.
Professional lithium battery manufacturer specializing in Lithium Polymer batteries, lithium ion batteries, and custom battery solutions for law enforcement, medical, industrial, and consumer electronics applications.
- Email: info@asolbattery.com
- WhatsApp: +86 15779858703
- Website: www.asolbattery.com
Need a different size or capacity? Explore ASOL’s full lithium polymer battery range →
