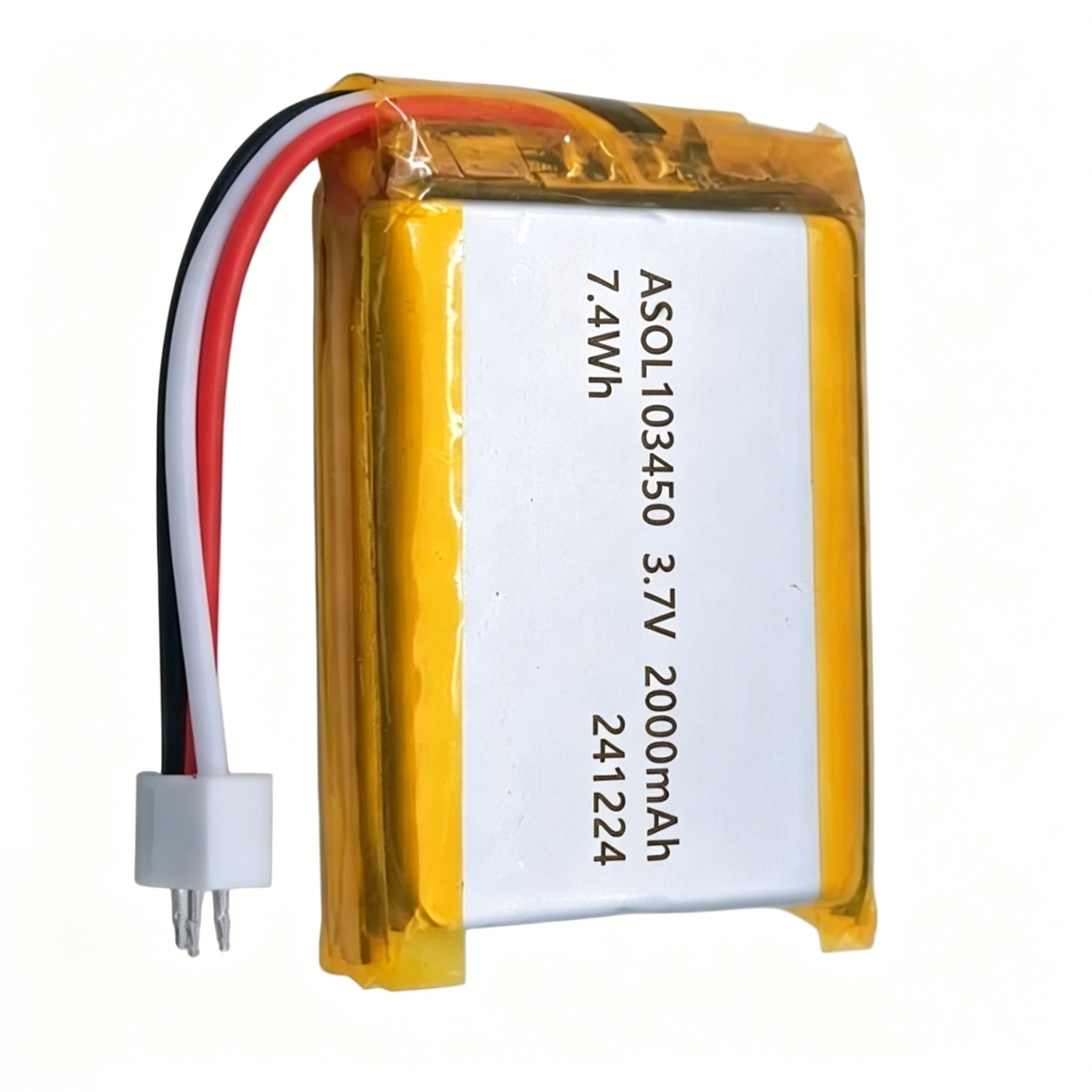

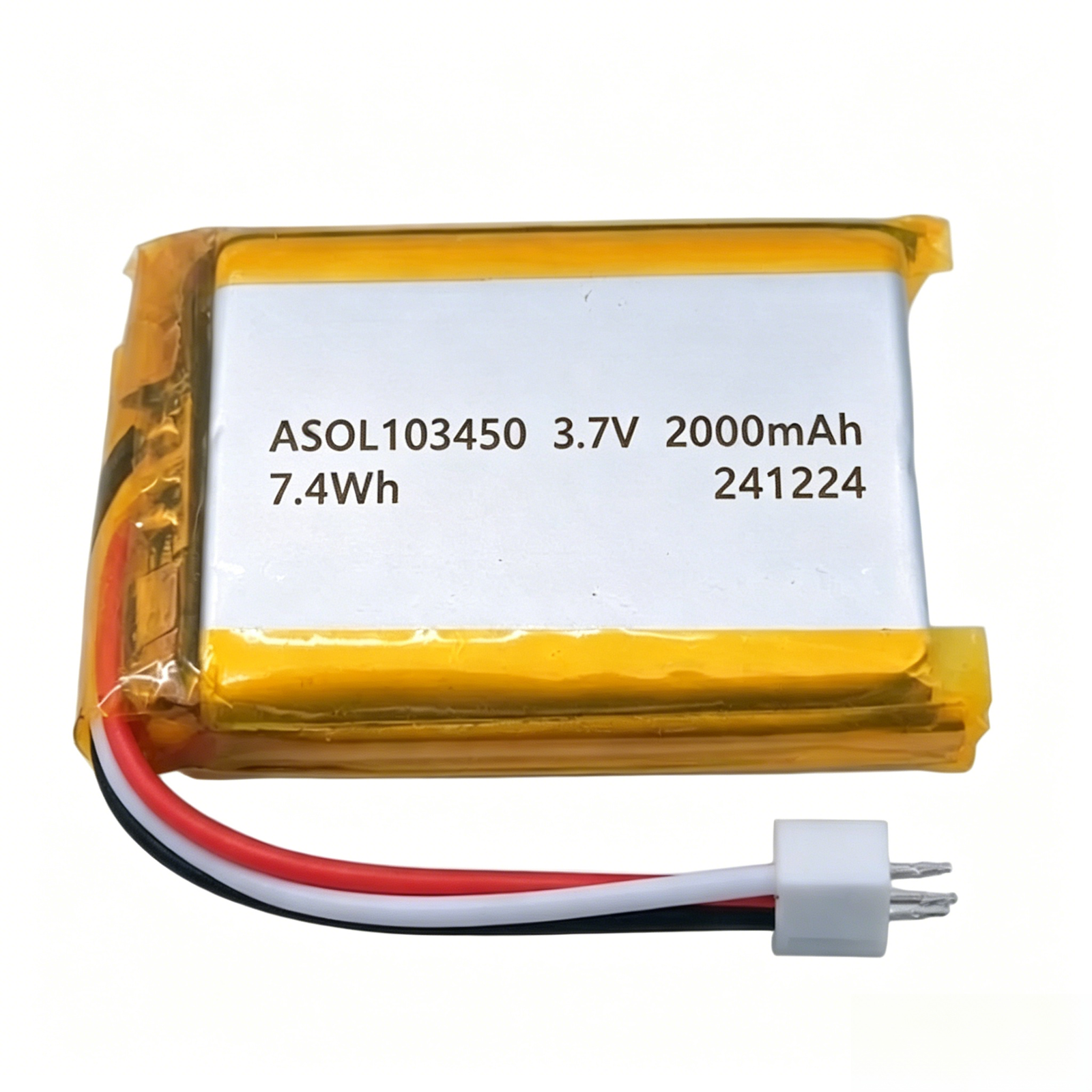

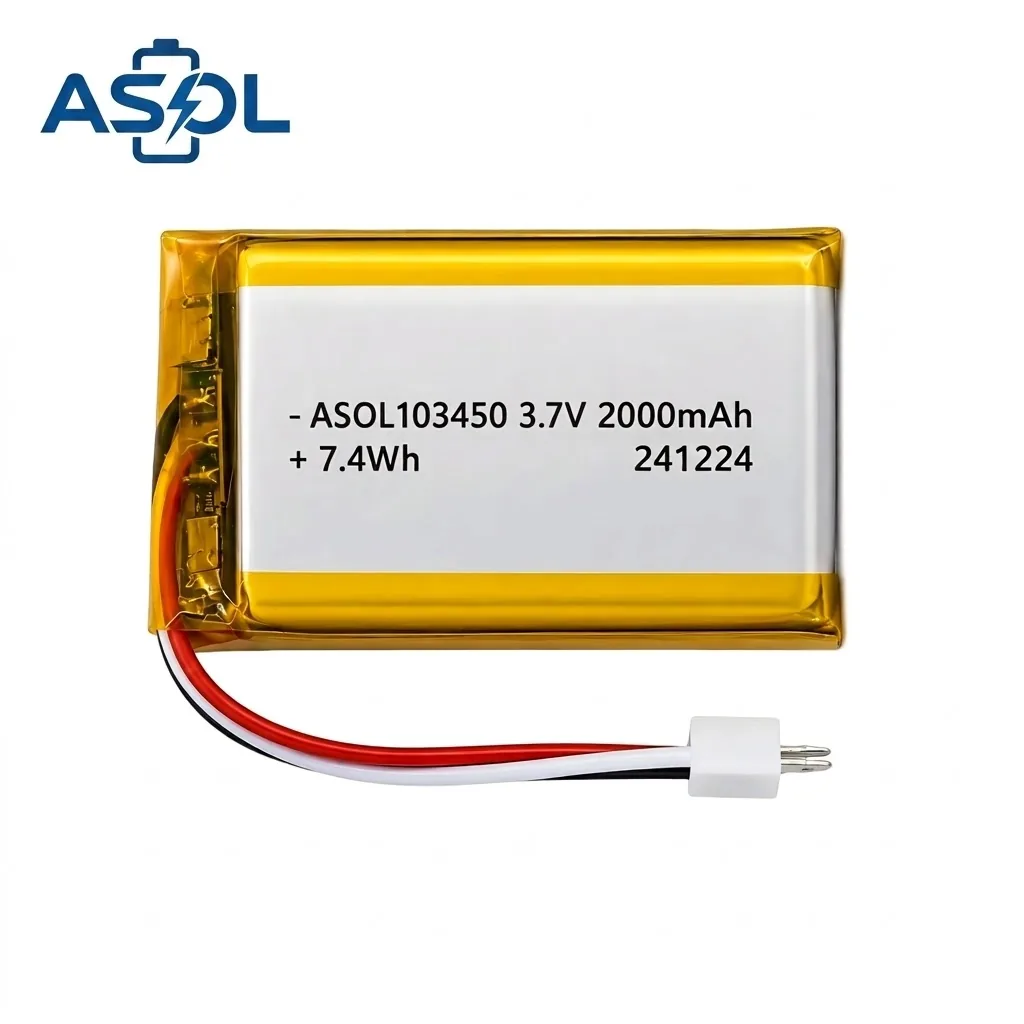

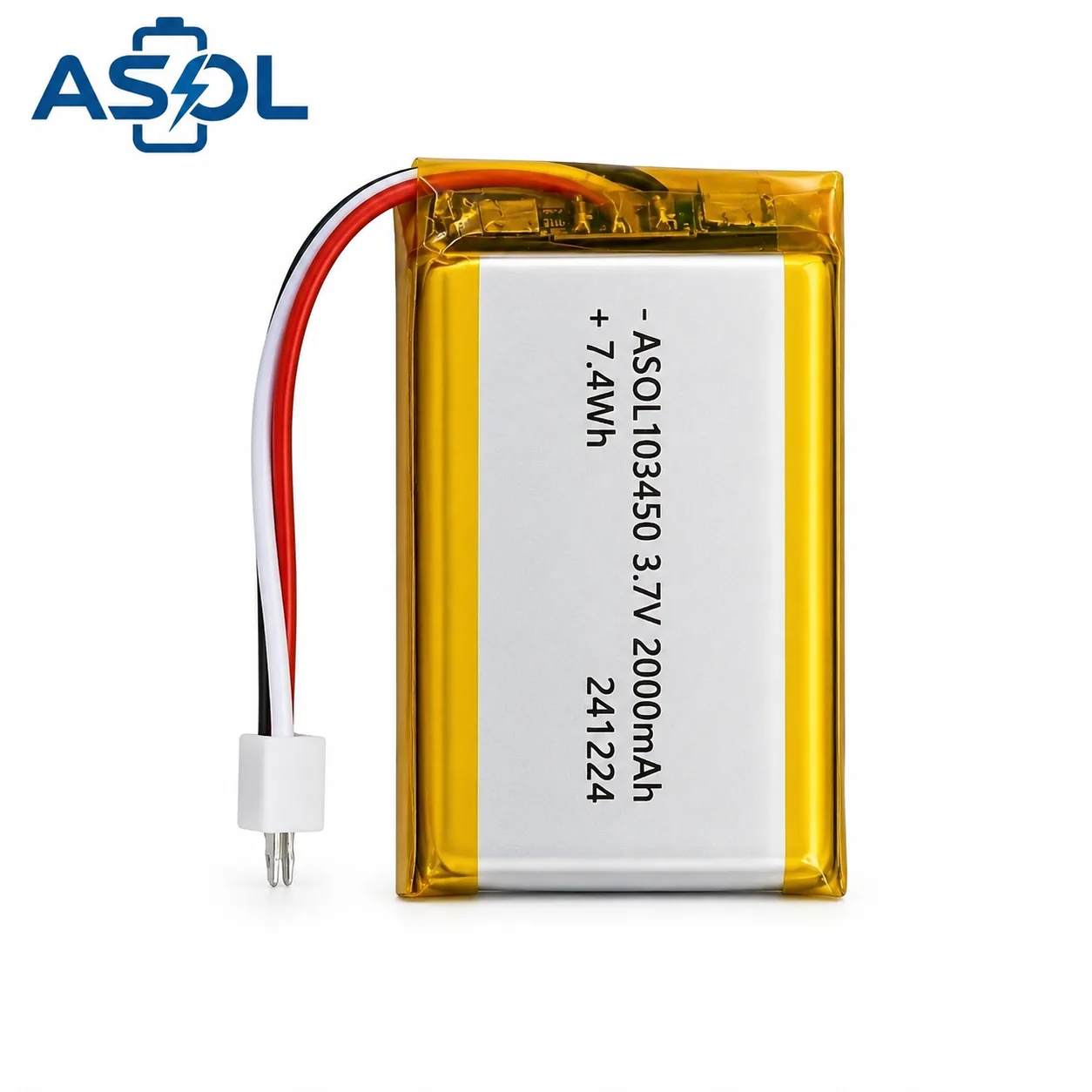

ASOL 103450 Lithium Polymer Battery — A high-capacity 2000mAh soft-pack Lithium Polymer delivering 7.4Wh energy in a slim 10.5mm profile with a 34×50mm wide rectangular footprint. This battery delivers high capacity in a compact wide-form factor — engineered for smart home security, tracking, portable printing, and beauty devices: compact wireless security cameras, GPS trackers, portable thermal printers, facial beauty devices, and smart video doorbells.
Why 10.5mm Slim + 2000mAh — Comparison
| Battery Type | Capacity | Thickness | Width | Best For |
|---|---|---|---|---|
| Standard 2000mAh | 2000mAh | 12~15mm | 30~35mm | Standard devices |
| ASOL 103450 | 2000mAh | 10.5mm | 34mm | Slim wide-form devices |
| Standard 1500mAh | 1500mAh | 8~10mm | 32~35mm | Less capacity |
Most 2000mAh batteries are 12~15mm thick. The 103450 delivers the same 2000mAh capacity in just 10.5mm thin — making it the slim choice for wide-form devices that need long runtime without bulk.
Why Lithium Polymer?
- 2000mAh High Capacity — All-day or multi-day device operation without recharging
- 10.5mm Slim Profile — Thinner than most 2000mAh batteries; comfortable handheld grip
- 34×50mm Wide Rectangular Footprint — Wide form for professional handheld devices
- 2000mA Continuous Discharge — Sufficient power for demanding devices
- Featherweight Soft Pack — Aluminum-laminated construction minimizes device weight
- Flexible Integration — Adapts to wide-form and irregular enclosures
- OEM-Friendly — Custom tabs, wires, connectors, and PCM available
Key Features
Slim wide-form power, OEM-ready
High energy for long-runtime devices.
Thinner than most 2000mAh batteries.
Wide-form for professional handheld devices.
Continuous power delivery for demanding devices.
Reliable long-term performance.
Charge 0~45°C · Discharge -20~60°C.
Safe for global air transport.
Custom tabs, wires, connectors, protection circuits.
Specifications
| Parameter | Value |
|---|---|
| Model | 103450 |
| Chemistry | Lithium Polymer (Lithium Polymer) Soft Pack |
| Nominal Voltage | 3.7V |
| Nominal Capacity | 2000mAh |
| Nominal Energy | 7.4Wh |
| Dimensions (T×W×H) | 10.5×34×50mm |
| Charge Voltage | 4.2V |
| Standard Charge Current | 400mA (0.2C) |
| Max Charge Current | 2000mA (1C) |
| Standard Discharge Current | 400mA (0.2C) |
| Max Discharge Current | 2000mA (1C, continuous) |
| Charge Cut-off | 4.2V |
| Discharge Cut-off | 2.5V |
| Charge Temperature | 0~45°C |
| Discharge Temperature | -20~60°C |
| Storage Temperature | -20~45°C (recommended) |
| Cycle Life | ≥500 cycles (100% DOD, 0.2C, 25°C) |
| Weight (Approx.) | ~40g |
| Certifications | UN38.3 |
Applications
Where the 103450 is used
2000mAh runs compact Wi-Fi cams 6-10h in a 10.5mm slim body.
10-14 days active tracking for vehicle, asset & pet trackers.
400-600+ print jobs per charge for mobile receipts & labels.
Powers facial brushes, LED masks & microcurrent tools 10-15 sessions.
3-6 months standby in narrow, slim doorbell enclosures.
Wholesale Pricing
| Quantity | Unit Price | Savings |
|---|---|---|
| 100-499 pcs | Contact us | - |
| 500-999 pcs | Contact us | 8% off |
| 1,000-4,999 pcs | Contact us | 15% off |
| 5,000+ pcs | Contact us | 20%+ off |
Wholesale Note: Custom specifications are welcome. Sample evaluation may be available for selected cylindrical and lithium polymer battery projects, subject to specification review and product availability. Sample freight is paid by the customer. Full certification documentation provided with shipment.
Frequently Asked Questions
What are the key specifications of the ASOL 103450 3.7V 2000mAh Lithium Polymer Battery Cell?
The ASOL 103450 3.7V 2000mAh Lithium Polymer Battery Cell is a 3.7V 2000mAh lithium battery, measuring 10.5×34×50mm, weighing ~40g.
What is the maximum discharge current of the ASOL 103450 3.7V 2000mAh Lithium Polymer Battery Cell?
The ASOL 103450 3.7V 2000mAh Lithium Polymer Battery Cell supports a maximum continuous discharge current of 2000mA.
How many charge cycles does the ASOL 103450 3.7V 2000mAh Lithium Polymer Battery Cell last?
The ASOL 103450 3.7V 2000mAh Lithium Polymer Battery Cell is rated for ≥500 cycles, retaining strong capacity across its service life.
What safety certifications does the ASOL 103450 3.7V 2000mAh Lithium Polymer Battery Cell have?
It is certified to UN38.3, and full test reports can be provided on request.
Does ASOL offer OEM/ODM customization for the ASOL 103450 3.7V 2000mAh Lithium Polymer Battery Cell?
Yes. As a lithium battery manufacturer, ASOL provides full OEM/ODM customization — capacity, voltage, cell configuration, connector type, wire length, and label printing can all be tailored to your application and order volume.
Can I get a sample or a quote for the ASOL 103450 3.7V 2000mAh Lithium Polymer Battery Cell?
Yes. Sample evaluation may be available for selected cylindrical and lithium polymer battery projects, subject to specification review and product availability. Sample freight is paid by the customer. Email info@asolbattery.com or message +86 15779858703 on WhatsApp for a quote — ASOL typically responds within 24 hours on working days.
